API 212L Discrete Mic Pre

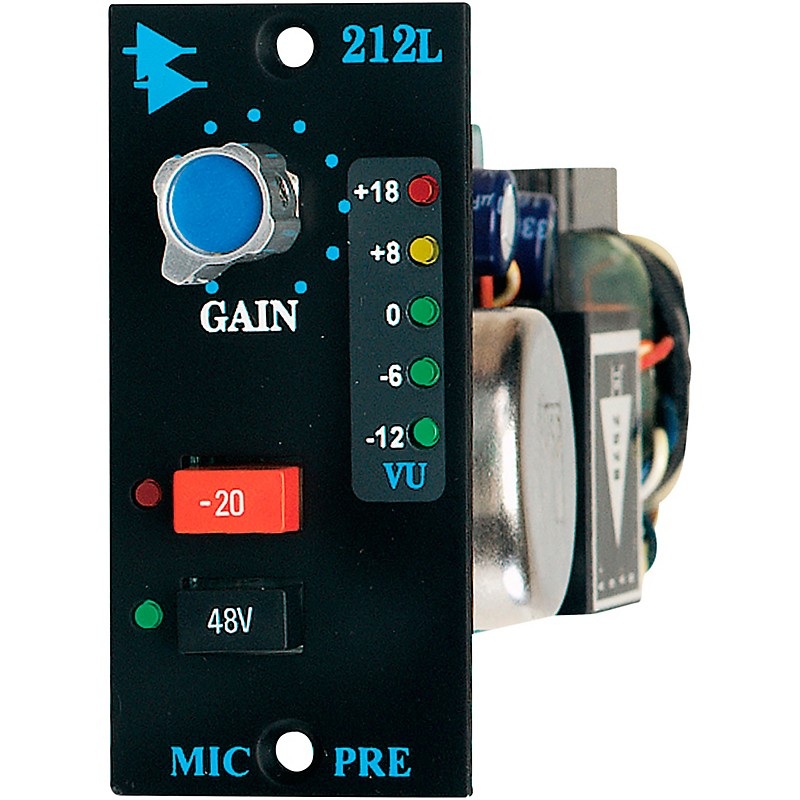

Overview Captures every nuance of your performance. The tone of the 212L mic preamp finds its roots in the classic API 2488 series all-discrete recording consoles, best known for the famed “LA” sound. This same mic preamp design is packaged into a compact module with features like a continuously adjustable Gain control and a unique 5-segment LED VU meter on each panel. An audio chain is only as strong as its weakest link. Often, emphasis is placed on obtaining the highest-quality microphones, while neglecting the integrity of the mic preamp. The API 212L incorporates the same circuit as the legendary API console input modules, dating from the 1970s up to and including the Model 1608, thus preserving its sonic qualities. This mic-pre articulates high frequencies with great detail, while delivering the big sounding, warm bottom end that API is famous for. Whether it’s a live performance or the private setting of a studio session, the 212L will capture every nuance of the moment. The 212L mic-pre all-discrete circuitry features the API 2520 OpAmp and both input and output transformers. A -20dB pad is provided, allowing the level feeding the mic transformer to be reduced by 20dB, while keeping the proper load on both the mic and transformer. 48V Phantom power can be locally switched on or off via the front panel switch. An LED VU meter provides a true VU indication of the mic pre output level. The low noise floor, together with a clip point over 28dBm, makes this preamp suitable for the most extreme applications requiring the highest quality audio. The API 212L microphone preamplifier is an integral part of the famous Legacy and Visions Series of consoles and is available for the L200 Rack System. The 212L Microphone Preamplifier makes use of the 2520 OpAmp and therefore exhibits the reliability, long life and uniformity which are characteristic of API products. Features Wide-range GAIN control 20dB pad 48V phantom power switch LED VU Meter Uses API 2520 OpAmp All-discrete circuit Transformer coupled inputs & outputs to 28dBu For that famed “LA” sound. Order today. Specs212L Discrete Mic Pre Specifications:Input Impedance Mic In: 1,500 ohms Output Impedance 85 ohms, transformer coupled, balanced Maximum Input Level 2dBu, No Pad, 18dBu, with Pad In Gain 55dB max Pad 20dB, 1500/150 ohm load Clipping Level 28dBu Frequency Response 0, -.3, 30 to 20kHz Noise (Actual Measured) -102dBu Unweighted, -125 dBu “A” Weighted 2020kHz DistortionTHD N .02% ( 4dB @ 2kHz) .01% ( 15dB @ 2kHz) .05% (-15dB @ 2kHz) Connectors .100 spaced ELCO Power Consumption 16V DC, 40mA max at 24dBu out Size 1.25″ x 2.65″ x 6.5″ Deep Actual Weight 55 lb. Reviews There are no reviews yet. Be the first to review “API 212L Discrete Mic Pre” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
